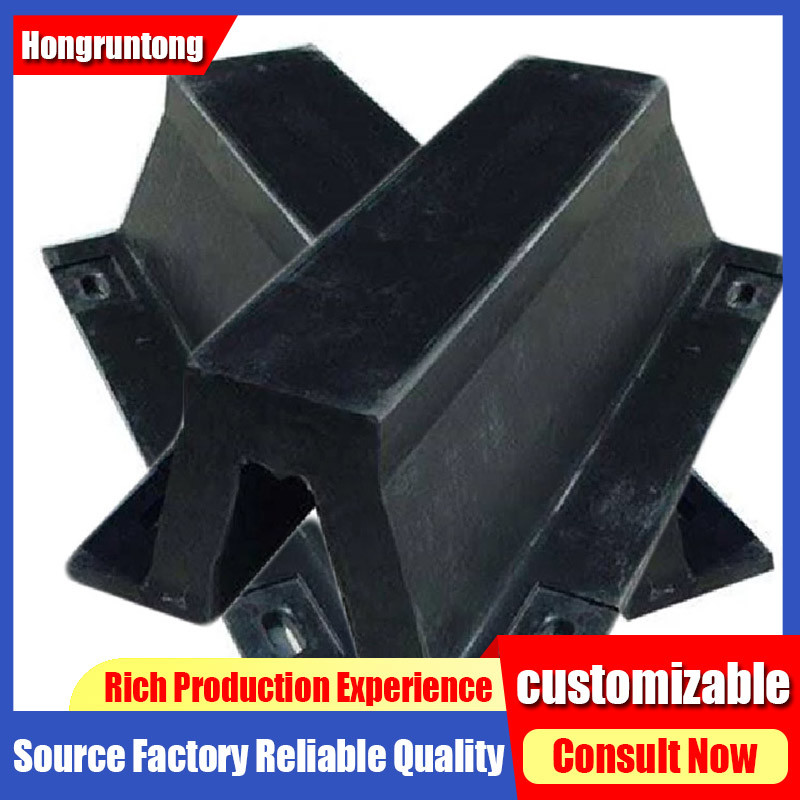

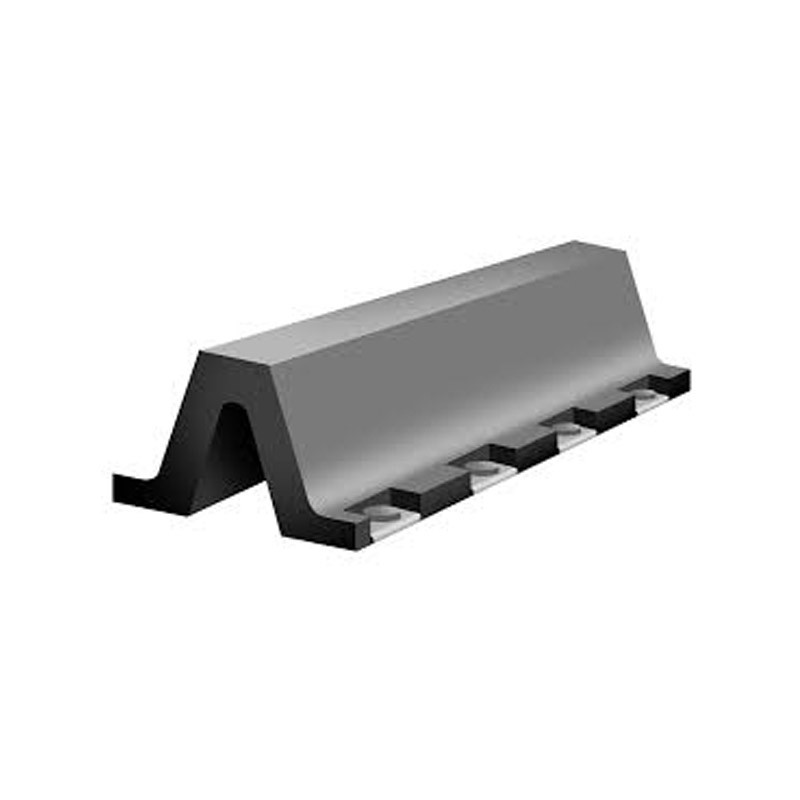

500h Arch Rubber Fender Strong Structure Uv Resistant Cost Effective
Description
Designed to handle multidirectional forces, Arch Fenders offer excellent resistance to shear and friction loads caused by vessel movement. This makes them especially suitable for docks with high tidal ranges or where angular berthing is common. Their strong anchoring system ensures reliable attachment, even under dynamic impact and side loads.
Specifications
| Product Name | Arch Rubber Fender | |
| Material | Natural rubber, Silicone rubber | |
| Colour | Black, or customized | |
| Surface | Smooth | |
| Size | Height | 200-1000mm |
| Length | 1000-3500mm | |
| All sizes can be customized | ||
| Physical Properties | Polymer Content | 100% virgin |
| Working temperature | -50℃~240℃ | |
| Tensile strength | ≥16 mpa | |
| Density | 90+/-5 Per 100mm in | |
| Hardness | 50-70 (shore A) | |
| Elongation | ≥400% | |
| Features | 1. Through high temperature resistant | |
| 2. Excellent tear resistant, oil resistant, aging resistant | ||
| 3. Resistant to industrial acid & alkali and good elastic | ||
| 4. Built as per PIANC2002 | ||
| Application | Multi-Purpose-Terminals, RoRo ramps, Passenger Vessel Terminals, Barge | |
| Model | W | B | F | C | H |
| [mm] | [mm] | [mm] | [mm] | [mm] | |
| HM-ARF200H | 400 | 320 | 145 | 128 | 200 |
| HM-ARF250H | 500 | 410 | 175 | 160 | 250 |
| HM-ARF300H | 600 | 490 | 225 | 196 | 300 |
| HM-ARF400H | 800 | 670 | 300 | 260 | 400 |
| HM-ARF500H | 1000 | 840 | 375 | 325 | 500 |
| HM-ARF600H | 1200 | 1010 | 450 | 390 | 600 |
| HM-ARF800H | 1600 | 1340 | 600 | 520 | 800 |
| HM-ARF1000H | 2000 | 1680 | 750 | 650 | 1000 |
Feature

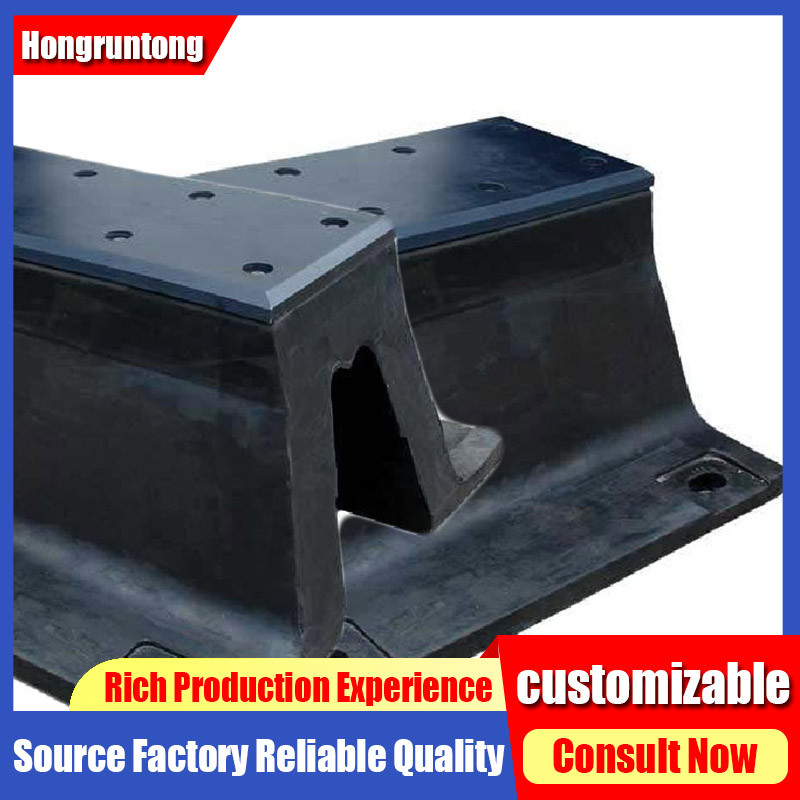

Adaptable to Steel or UHMW-PE Front Panels
Can be fitted with face pads or sliding panels to reduce hull pressure and improve vessel contact interface.
Low Maintenance Requirement
No internal metal parts or pressurized systems to maintain—routine inspections and occasional cleaning are sufficient.
Reliable in All Tidal Conditions
Performs efficiently at various water levels, making it suitable for harbors with significant tidal fluctuation.
Compatible with All Vessel Types
Ideal for ferries, cargo ships, tankers, tugboats, navy vessels, and more—suitable for a wide range of docking scenarios.
Application
► Ro-Ro terminals
► Ferry docks
► General cargo ports
► Fishing harbors
Advantages
Strict Quality Control Procedures
Each fender undergoes full inspections including compression testing, rubber hardness, tensile strength, and dimensional accuracy.
Advanced Testing Equipment
Our lab includes a full suite of ASTM and ISO-standard testing machines for energy absorption, elongation, and aging resistance.
High Quality Raw Materials
We source premium-grade rubber compounds, carbon black, and additives to guarantee high elasticity, UV resistance, and longevity.
Large Scale Production Capacity
Capable of fulfilling high-volume international orders while maintaining lead times through efficient production planning.
FAQ
1. Are Arch Rubber Fenders environmentally friendly?
Yes, they are made from recyclable materials and designed to minimize environmental impact during production and use.
2. How do Arch Rubber Fenders compare with cylindrical or panel fenders?
Arch fenders offer better energy absorption per unit size and lower reaction force compared to cylindrical fenders, and are easier to install than some panel systems.
3. Can these fenders be used in tidal or river ports?
Yes, they perform well under varying water levels and are suitable for tidal, river, and coastal ports.
4. What certifications do your Arch Rubber Fenders have?
Our products meet international standards such as ISO 17357 and certifications relevant to marine fender performance.
