V Type Rubber Fender 400h High Energy Easy Install Long Service Life Customizable
Dimensions
Description

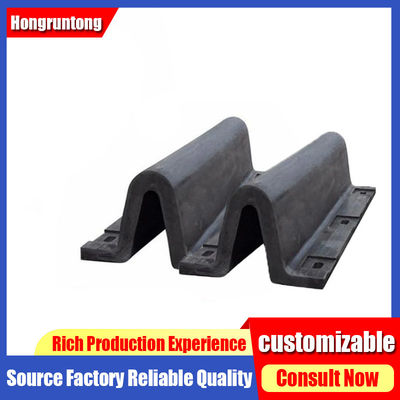

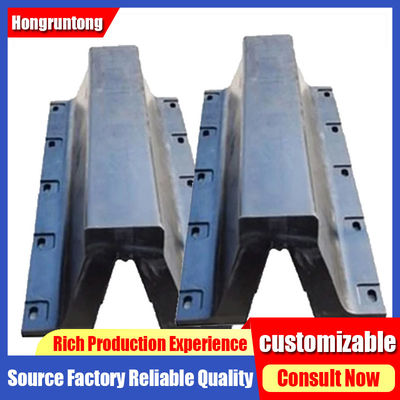

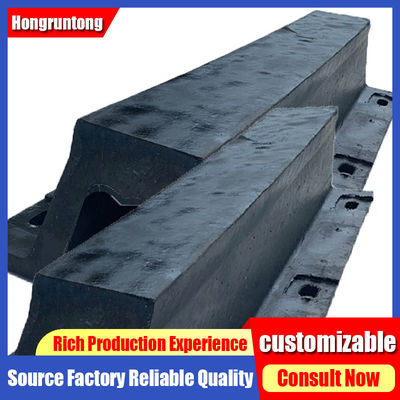

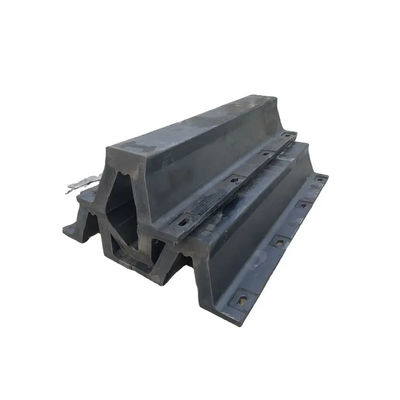

Arch Rubber Fenders offer a great balance between performance and cost, making them a popular choice for small harbors and large commercial ports alike. Available in a wide range of sizes and configurations, they can be tailored to suit different vessel types and berth structures. Their durability, low maintenance needs, and simple installation make them a smart long-term investment.
Specifications
|
Product Name |
Arch Rubber Fender |
|
|
Material |
Natural rubber, Silicone rubber |
|
|
Colour |
Black, or customized |
|
|
Surface |
Smooth |
|
|
Size |
Height |
200-1000mm |
|
Length |
1000-3500mm |
|
|
All sizes can be customized |
||
|
Physical Properties |
Polymer Content |
100% virgin |
|
Working temperature |
-50℃~240℃ |
|
|
Tensile strength |
≥16 mpa |
|
|
Density |
90+/-5 Per 100mm in |
|
|
Hardness |
50-70 (shore A) |
|
|
Elongation |
≥400% |
|
|
Features |
1. Through high temperature resistant |
|
|
2. Excellent tear resistant, oil resistant, aging resistant |
||
|
3. Resistant to industrial acid & alkali and good elastic |
||
|
4. Built as per PIANC2002 |
||
|
Application |
Multi-Purpose-Terminals, RoRo ramps, Passenger Vessel Terminals, Barge |
|
|
Model |
W |
B |
F |
C |
H |
|
[mm] |
[mm] |
[mm] |
[mm] |
[mm] |
|
|
HM-ARF200H |
400 |
320 |
145 |
128 |
200 |
|
HM-ARF250H |
500 |
410 |
175 |
160 |
250 |
|
HM-ARF300H |
600 |
490 |
225 |
196 |
300 |
|
HM-ARF400H |
800 |
670 |
300 |
260 |
400 |
|
HM-ARF500H |
1000 |
840 |
375 |
325 |
500 |
|
HM-ARF600H |
1200 |
1010 |
450 |
390 |
600 |
|
HM-ARF800H |
1600 |
1340 |
600 |
520 |
800 |
|
HM-ARF1000H |
2000 |
1680 |
750 |
650 |
1000 |
Feature
Excellent Angular Performance
Maintains energy absorption even when vessels approach the berth at an angle, reducing the risk of fender failure.
Corrosion-Resistant Hardware
Typically used with galvanized or stainless-steel mounting bolts and brackets for long-term resistance in marine environments.
Environmentally Stable Material
Rubber retains elasticity and strength in both hot and cold climates without cracking or excessive hardening.
Cost Effective Protection Solution
Offers a great balance of performance, durability, and price—minimizing long-term operating costs for ports and operators.
Applications
► Container terminals
► Bulk cargo berths
► Tanker ports
► Naval bases
Advantages
Over 30 Years of Industry Expertise
With three decades of manufacturing experience, we deeply understand port protection requirements and fender performance optimization.
ISO Certified Production Facility
Our factory operates under ISO 9001 and ISO 14001 quality and environmental management systems, ensuring consistent and compliant output.
In House Rubber Mixing and Vulcanization
We control every step of rubber formulation and curing to ensure superior mechanical properties and long-term durability.
Customized Fender Engineering
We offer tailor-made solutions in size, hardness, and performance based on specific port and vessel requirements.
FAQ
1. What is the maximum energy absorption of Arch Rubber Fenders?
This depends on size and design but can reach several hundred kJ per meter of fender length for large models.
2. How quickly can you deliver Arch Rubber Fenders?
Typical lead time ranges from 4 to 8 weeks depending on order size and customization requirements.
3. Do you offer technical support for fender selection and installation?
Yes, we provide expert engineering consultation, layout design, and installation guidance worldwide.
4. What warranties do you provide for your Arch Rubber Fenders?
We offer standard warranties covering manufacturing defects and material quality, usually 12 to 24 months after delivery.
